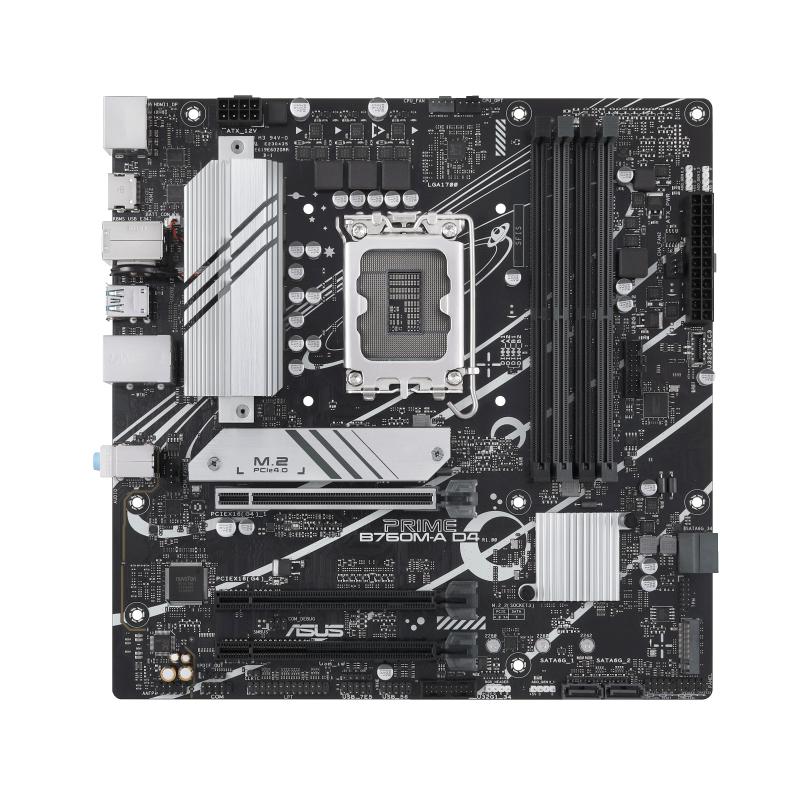

Asus prime b760m - a d4 - csm. fabricante de procesador: intel - socket de procesador: lga 1700 - procesador compatible: intel celeron - intel pentium gold - intel core i3 - intel core i5 - intel core.... tipos de memoria compatibles: ddr4 - sdram - memoria interna máxima: 128 gb - tipo de ranuras de memoria: dimm. interfaces de disco de almacenamiento soportados: m.2 - sata iii - tipos de unidades de almacenamiento admitidas: hdd & ssd - niveles raid: 0 - 1 - 5 - 10. tipo de interfaz ethernet: 2.5 gigabit ethernet. componente para: pc - factor de forma: micro atx - familia del chipset: intel
cpu intel socket lga1700 for 13th gen intel core processors & 12th gen intel core - pentium gold and celeron processors* supports intel turbo boost technology 2.0 and intel turbo boost max technology 3.0** *refer to www.asus.com for cpu support list. ** intel turbo boost max technology 3.0 support depends on the cpu types. chipset intel b760 chipset memoria 4 x dimm - max. 128gb - ddr4 5333(oc) - 5066(oc) - 5000(oc) - 4800(oc) - 4600(oc) - 4400(oc) - 4266(oc) - 4000(oc) - 3733(oc) - 3600(oc) - 3466(oc) - 3400(oc) - 3333 (oc) - 3200 - 3000 - 2933 - 2800 - 2666 - 2400 - 2133 non - ecc - un - buffered memory* dual channel memory architecture supports intel extreme memory profile (xmp) optimem ii * supported memory types - data rate(speed) - and number of dram modules vary depending on the cpu and memory configuratión - for more informatión refer to www.asus.com for memory support list. gráficos 1 x displayport** 2 x hdmi ports*** * graphics specificatións may vary between cpu types. please refer to www.intel.com for any updates. ** supports max. 4k@60hz as specified in displayport 1.4. *** supports 4k@60hz as specified in hdmi 2.1. expansión slots intel 13th & 12th gen processors 1 x pcie 4.0 x16 slot intel b760 chipset 1 x pcie 4.0 x16 slot (supports x4 mode) 1 x pcie 4.0 x16 slot (supports x1 mode) note: to ensure compatibility of the device installed - please refer to https: - - www.asus.com - support - for the list of supported peripherals. almacenamiento total supports 2 x m.2 slots and 4x sata 6gb - s ports* intel 13th & 12th gen processors m.2_1 slot (key m) - type 2242 - 2260 - 2280 (supports pcie 4.0 x4 mode) intel b760 chipset m.2_2 slot (key m) - type 2242 - 2260 - 2280 (supports pcie 4.0 x4 mode) 4 x sata 6gb - s ports * intel rapid storage technology supports sata raid 0 - 1 - 5 - 10. ethernet 1 x realtek 2.5gb ethernet usb rear usb (total 6 ports) 2 x usb 3.2 gen 2 ports (2 x type - a ) 4 x usb 2.0 ports (4 x type - a) front usb (total 10 ports) 2 x usb 3.2 gen 1 headers support 4 additiónal usb 3.2 gen 1 ports 1 x usb 3.2 gen 1 connector (supports usb type - c) 2 x usb 2.0 headers support 4 additiónal usb 2.0 ports 1 x usb 2.0 header supports 1 additiónal usb 2.0 port audio realtek 7.1 surround sound high definitión audio codec* - supports: jack - detectión - multi - streaming - front panel jack - retasking - supports up to 24 - bit - 192 khz playback audio features - audio shielding - premium audio capacitors - dedicated audio pcb layers * a chassis with an hd audio module in the front panel is required to support 7.1 surround sound audio output. back panel i - o ports 2 x usb 3.2 gen 2 ports (2 x type - a ) 4 x usb 2.0 ports (4 x type - a) 1 x displayport 2 x hdmi ports 1 x realtek 2.5gb ethernet port 3 x audio jacks 1 x ps - 2 keyboard - mouse combo port internal i - o connectors fan and cooling related 1 x 4 - pin cpu fan header 1 x 4 - pin cpu opt fan header 2 x 4 - pin chassis fan headers power related 1 x 24 - pin main power connector 1 x 8 - pin +12v power connector storage related 2 x m.2 slots (key m) 4 x sata 6gb - s ports usb 2 x usb 3.2 gen 1 headers support 4 additiónal usb 3.2 gen 1 ports 1 x usb 3.2 gen 1 connector (supports usb type - c) 2 x usb 2.0 headers support 4 additiónal usb 2.0 ports 1 x usb 2.0 header supports 1 additiónal usb 2.0 port miscellaneous 3 x addressable gen 2 headers 1 x aura rgb header 1 x clear cmos header 1 x com port header 1 x front panel audio header (aafp) 1 x lpt header 1 x s - pdif out header 1 x spi tpm header (14 - 1pin) 1 x 20 - 3 pin system panel header with chassis intrude functión características especiales asus 5x protection iii - digi+ vrm - languard - overvoltage protectión - safeslot core+ - stainless - steel back i - o asus q - design - q - dimm - q - led core - q - slot asus thermal solutión - m.2 heatsink - vrm heatsink design asus ez diy - procool aura sync - aura rgb header - addressable gen 2 headers software features asus exclusive software armoury crate - aura creator - aura sync - fan xpert 2+ - power saving ai suite 3 - digi+ vrm - pc cleaner asus cpu - z nortón deluxe (60 days free trial) winrar uefi bios asus ez diy - asus crashfree bios 3 - asus ez flash 3 - asus uefi bios ez mode bios 128 mb flash rom - uefi ami bios manejabilidad wol by pme - pxe accesorios cables 2 x sata 6gb - s cables miscellaneous 1 x i - o shield 1 x m.2 rubber package 1 x screw package for m.2 ssd documentatión 1 x acc express activatión key card 1 x user guide sistema operativo windows 11 - windows 10 64 - bit factor de forma matx form factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
